Scientific Illustrations - Images created for the Colloid Formation and Migration (CFM) Experiment (Grimsel)

The Coloid Formation and Migration experiment is being carried out at the Grimsel Test Site (GTS), situated deep under the Alps in Switzerland - full details can be found on the dedicated GTS website : http://www.grimsel.com

For the in-situ CFM experiment, a potential source of radionuclides and colloides (with radionuclides pre-spiked bentonite rings) will be emplaced in an advective flow system in the host rock.

The formation and transport of colloids and colloid-associated radionuclides is monitored under repository relevant flow conditions and over relevant distances.

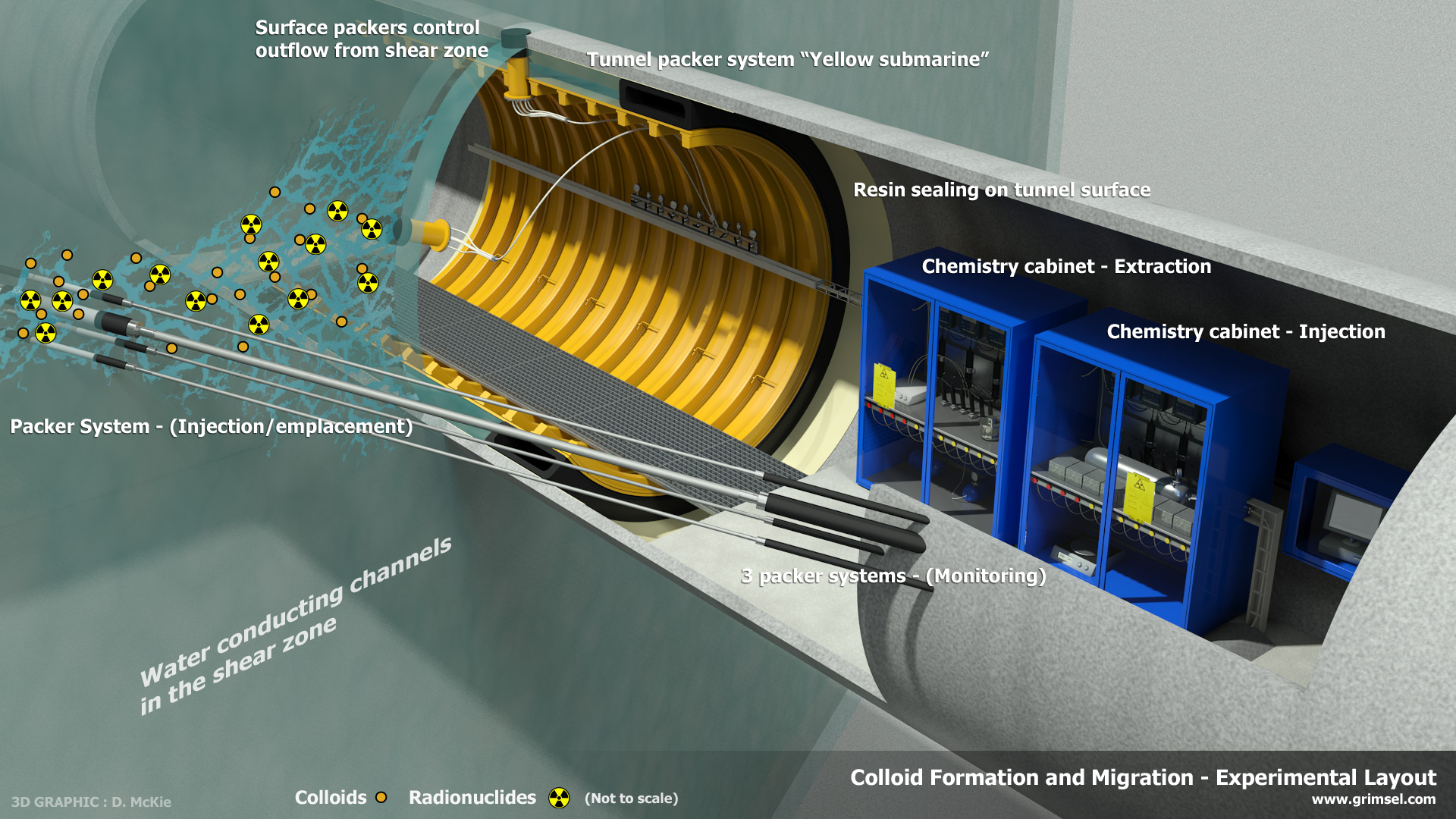

This detailed cross-section of the experiment was created to illustrate the concept layout.

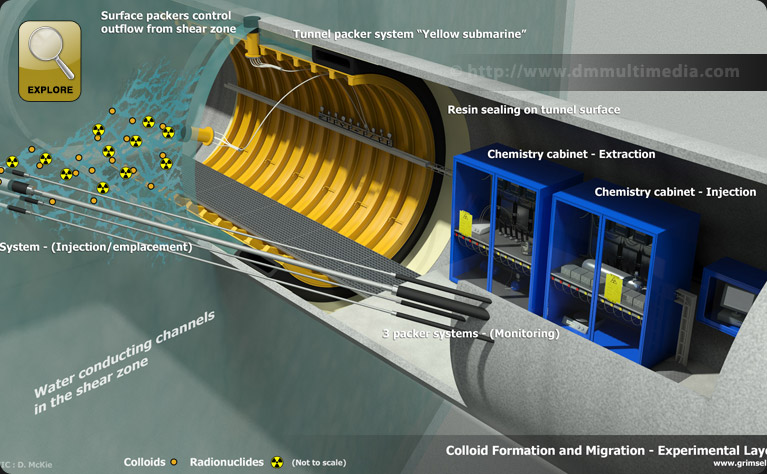

Colloid Formation and Migration experiment, Grimsel, Switzerland - move mouse over to enlarge and explore

This video requires Flash to view

720P HD video of the Colloid Formation and Migration experiment at the Grimsel Test Site - showing release and extraction of colloids using particle animation

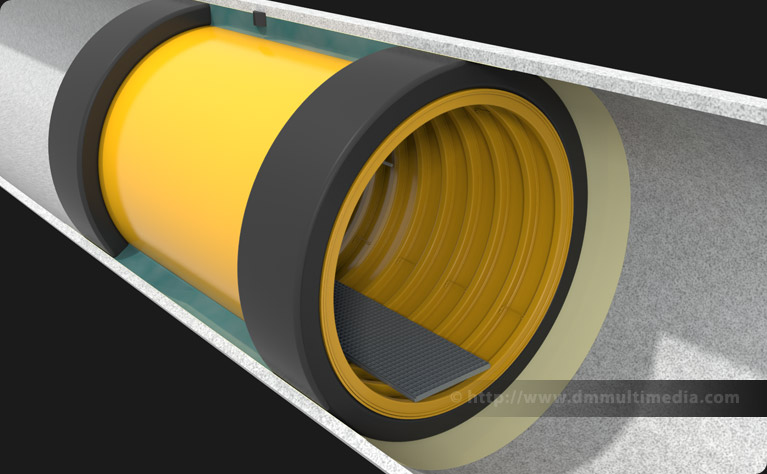

Colloid Formation and Migration experiment, Grimsel, Switzerland - Mega Packer design

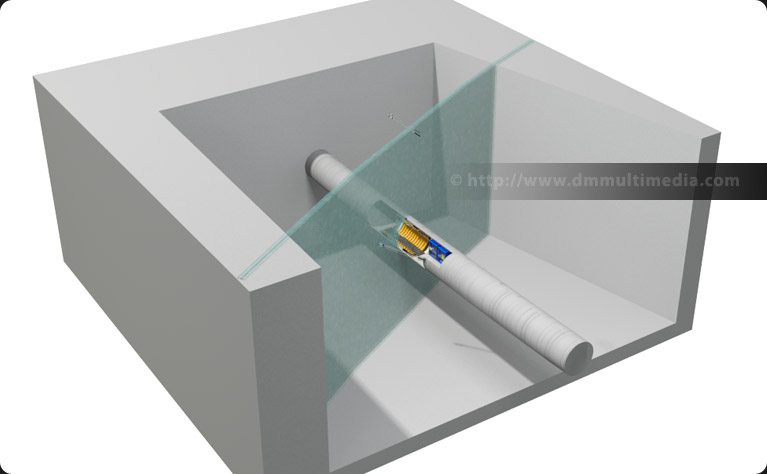

Colloid Formation and Migration experiment, Grimsel, Switzerland - Overall view of the CFM experiment

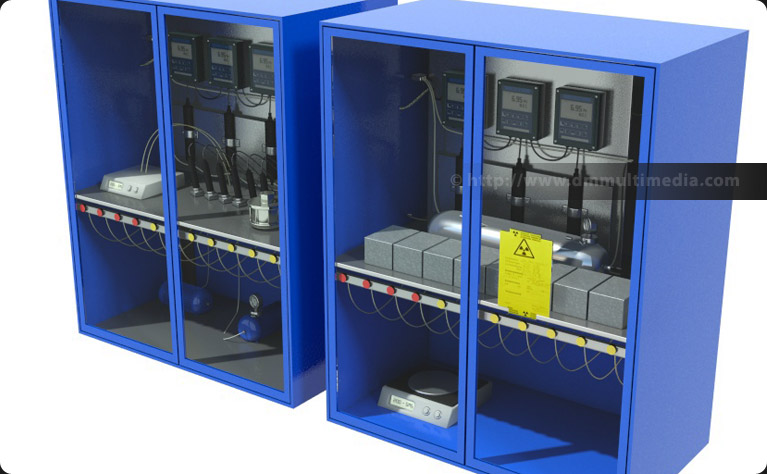

Colloid Formation and Migration experiment, Grimsel, Switzerland - Cabinets housing the scientific measuring devices and recorders

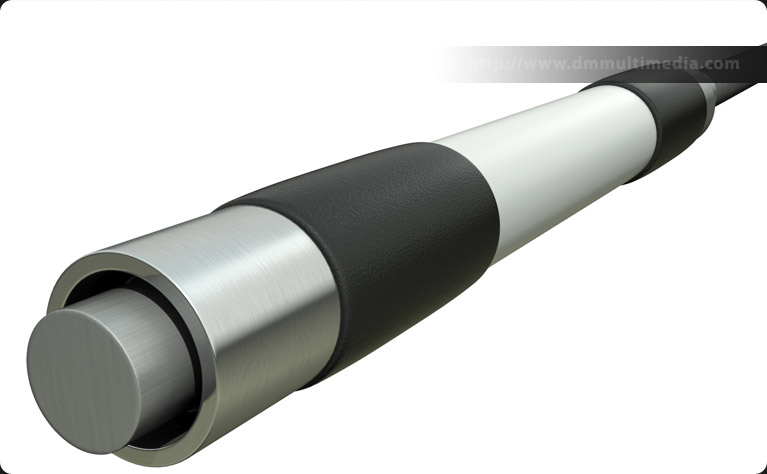

Colloid Formation and Migration experiment, Grimsel, Switzerland - Borehole Packer design

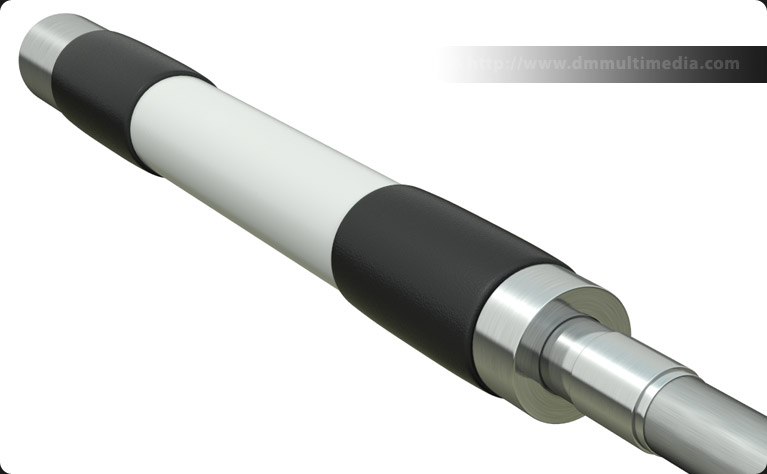

Colloid Formation and Migration experiment, Grimsel, Switzerland - Borehole Packer design - alternate view
